RBICAB Submersible Motor Flat Cables are specially designed to provide reliable power supply to submersible pumps and motors operating under water or in demanding conditions. Manufactured using high-grade electrolytic copper conductors, these cables ensure excellent conductivity, low power loss, and consistent performance even in deep borewells or underwater applications.

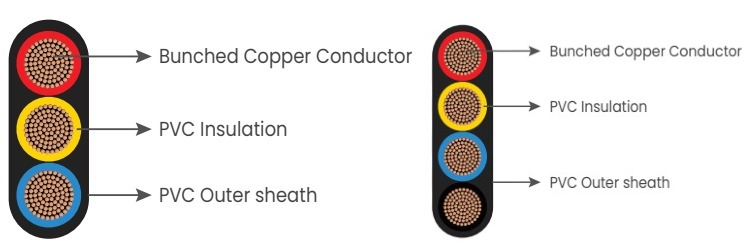

The conductors are insulated with superior PVC compound that offers excellent electrical strength, resistance to moisture, abrasion, and chemicals. The three-core flat design makes them highly flexible, easy to install, and space-saving, allowing smooth operation in narrow pipelines or confined spaces where round cables cannot be used effectively.
Their robust construction provides high mechanical strength, resistance to harsh weather, and prolonged durability. With uniform insulation thickness and carefully designed sheathing, these cables prevent leakage, withstand continuous immersion in water, and offer enhanced protection against voltage fluctuations.
Widely used in agriculture, irrigation, industrial water supply, and domestic borewells, RBICAB Submersible Motor Flat Cables are the trusted choice for reliable and efficient pump operations. They are manufactured in compliance with international standards, ensuring safety, efficiency, and long service life even under extreme working conditions.
| Feature | Details |
|---|---|
| Conductor | RBICAB High-grade electrolytic copper for excellent conductivity and low power loss |
| Insulation | RBICAB Special PVC compound with high electrical strength, moisture & abrasion resistance |
| Design | RBICAB Flat 3-core construction for flexibility, easy installation, and compact fitting |
| Durability | RBICAB Robust build to withstand continuous immersion in water and harsh environments |
| Protection | RBICAB Uniform insulation and sheathing prevent leakage and voltage fluctuation issues |
| Applications | RBICAB Agriculture, irrigation, borewells, industrial and domestic water supply |
| Standards | RBICAB Manufactured as per international safety and performance standards |
| conductor | insulation | sheath | Conductor Resistance @20°C (Max.) Ohms/km | Current Carrying Capacity @ 40°C (Amps) | ||
|---|---|---|---|---|---|---|
| Area (nom). sq. mm | no/dia. of stands mm | thickness (nom). mm | overall dimensions | |||
| thickness (nom). mm | size (approx.) (WxT) mm | |||||
| 1.5 | 30/0.25 | 0.8 | 1.1 | 11.4 x 5.3 | 13.3 | 16 |
| 2.5 | 50/0.25 | 0.9 | 1.2 | 13.3 x 6.0 | 7.98 | 22 |
| 4 | 56/0.3 | 1 | 1.3 | 16.1 x 7.1 | 4.95 | 29 |
Note: Insulation thickness, sheath thickness and overall dimension given in this table are nominal values. The strand diameter is nominal, however, construction of the conductor is designed to satisfy the requirement of conductor resistance as per IS 8130:2013.
| conductor | insulation | sheath | Conductor Resistance @20°C (Max.) Ohms/km | Current Carrying Capacity @ 40°C (Amps) | ||
|---|---|---|---|---|---|---|
| Area (nom). sq. mm | no/dia. of stands mm | thickness (nom). mm | overall dimensions | |||
| thickness (nom). mm | size (approx.) (WxT) mm | |||||
| 6 | 84/0.3 | 1.1 | 1.4 | 18.6 x 8.0 | 3.30 | 37 |
| 10 | 80/0.4 | 1.3 | 1.6 | 23.4 x 10.0 | 1.91 | 51 |
| 16 | 126/0.4 | 1.4 | 1.8 | 27.0 x 11.4 | 1.21 | 68 |
| 25 | 196/0.4 | 2.0 | 2.2 | 35.4 x 15.0 | 0.78 | 86 |
| 35 | 276/0.4 | 2.1 | 2.2 | 39.3 x 16.3 | 0.554 | 110 |
| 50 | 396/0.4 | 2.2 | 2.4 | 45.7 x 18.5 | 0.386 | 145 |
Note: 3 Core x 70 sq. mm & 3 Core x 95 sq. mm Flat Cable are available on request.
