Fire-Survival Cables
Enquiry Now

Fire-Survival Cables

RBICAB Fire-Survival Cables are specially engineered to maintain circuit integrity during extreme fire conditions. Designed with advanced insulation and protective materials, these cables ensure uninterrupted power and signal transmission even in the event of a fire. They are widely used in emergency systems where reliability can save lives—such as fire alarms, emergency lighting, public address systems, control circuits, and critical industrial installations.

Built with flame-retardant, low-smoke, and zero-halogen compounds, RBICAB Fire-Survival Cables minimize the release of toxic gases and dense smoke, allowing safer evacuation and better visibility during emergencies. The high dielectric strength, superior heat resistance, and excellent mechanical durability make these cables perform consistently even under prolonged exposure to heat and flame.

RBICAB’s commitment to safety and innovation ensures that every Fire-Survival Cable undergoes rigorous testing to meet national and international standards. They are designed for long service life, easy installation, and reliable operation—providing total assurance where performance under fire is non-negotiable.

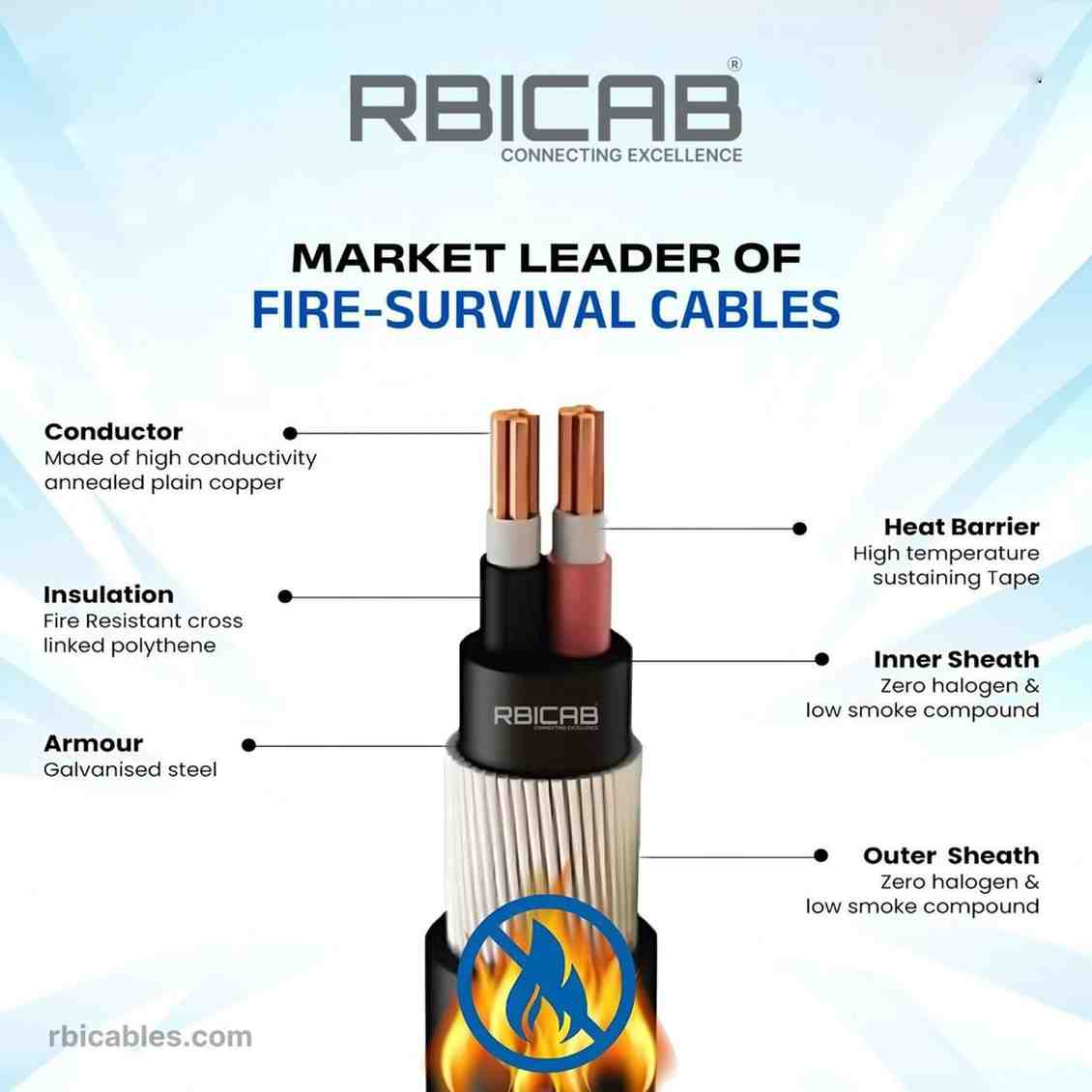

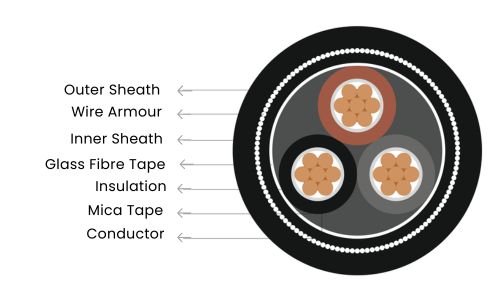

Cable Construction

  • Construction: Plain annealed stranded copper conductors.
  • Conductor: For sizes up to and including 16mm² are offered in circular . Shaped conductors are offered from 25 mm² and onwards.
  • Insulation: Mica (fire – resistant) tapes, covered by an extruded layer of cross – linked polyethylene.
  • Bedding: An extruded layer of thermoplastic low smoke zero halogen (LSZH) compound.
  • Armour: Single layer of galvanized steel wires.
  • Sheath: Thermoplastic low smoke zero halogen (LSZH) compound.

Cable Technical Data

Nominal
Cross
Sectional
Area
(Sq. mm)		 Insulation
Thickness
(mm)		 Nominal
Armour
Wire
Diameter
(mm)
 Approx.
Diameter
Under
Armour
(mm)
 Approx.
Overall
Diameter
(mm)
 Approx.
Cable
Weight
(kg/km)
 Max. DC
Conductor
Resistance
at 20°C
(Ω/km)
 Max. AC
Conductor
Resistance
at 90°C
(Ω/km)
 Reactance
at 50Hz
(Ω/km)
 AC
Impedance
at 90°C
(Ω/km)
 Max. Arm.
Resistance
at 20°C
(Ω/km)
2 Core 1.5* 0.6 0.9 8.5 13.0 415 12.1 15.428 0.104 15.428 10.7
2.5* 0.7 0.9 10 14.5 495 7.41 9.448 0.101 9.448 8.8
4* 0.7 0.9 11 15.5 575 4.61 5.878 0.099 5.878 7.9
6* 1 0.9 12.5 17.0 658 3.08 3.927 0.094 3.928 7.0
10* 1 0.9 14.0 19.0 828 1.83 2.333 0.093 2.335 6.0
16 1 1.25 16.0 21.5 1005 1.15 1.466 0.088 1.469 3.8
25 1 1.25 15.5 21.2 1105 0.727 0.927 0.082 0.93 3.7
35 1 1.6 17.5 24.0 1555 0.524 0.668 0.077 0.673 2.5
50 1 1.6 20.0 26.5 1855 0.387 0.494 0.076 0.5 2.3
70 1.1 1.6 23.0 30.0 2455 0.268 0.342 0.075 0.349 2.0
95 1.1 2.0 26.0 34.0 3345 0.193 0.247 0.074 0.258 1.4
120 1.2 2.0 29.0 37.0 3898 0.153 0.196 0.072 0.209 1.3
150 1.4 2.0 32.0 40.0 4645 0.124 0.16 0.073 0.176 1.2
185 1.6 2.5 36.0 45.5 5945 0.0991 0.128 0.073 0.148 0.82
240 1.7 2.5 40.0 50.0 7345 0.0754 0.099 0.072 0.122 0.73
300 1.8 2.5 44.0 54.5 8695 0.0601 0.08 0.072 0.107 0.67
400 2 2.5 49.5 60.0 10745 0.047 0.064 0.071 0.096 0.59
3 Core 1.5* 0.6 0.9 9.0 13.5 423 12.1 15.428 0.104 15.428 10.2
2.5* 0.7 0.9 10.5 15.0 544 741 9.448 0.101 9.448 8.2
4* 0.7 0.9 11.5 16.5 644 4.61 5.878 0.099 5.878 7.5
6* 0.7 0.9 13.0 17.5 738 3.08 3.927 0.094 3.925 6.6
10* 0.7 1.25 15.0 20.5 1085 1.83 2.333 0.093 2.335 4.0
16 0.7 1.25 17.0 22.5 1313 1.15 1.466 0.088 1.469 3.6
25 0.9 1.6 20.0 26.5 1803 0.727 0.927 0.082 0.93 2.5
35 0.9 1.6 22.0 29.0 2202 0.524 0.668 0.077 0.673 2.3
50 1 1.6 22.5 29.5 2453 0.387 0.494 0.076 0.5 2.0
70 1.1 1.6 26.0 33.0 3202 0.268 0.342 0.075 0.349 1.8
95 1.1 2.0 30.0 38.0 4455 0.193 0.247 0.074 0.258 1.3
120 1.2 2.0 33.0 41.5 5305 0.153 0.196 0.072 0.209 1.2
150 1.4 2.5 37.0 46.5 6705 0.124 0.16 0.073 0.176 0.78
185 1.6 2.5 41.0 51.0 8052 0.0991 0.128 0.073 0.148 0.71
240 1.7 2.5 46.0 56.0 9953 0.0754 0.099 0.072 0.122 0.63
300 1.8 2.5 51.0 61.0 12053 0.0601 0.08 0.072 0.107 0.58
400 2.0 2.5 57.0 67.5 14803 0.047 0.064 0.071 0.096 0.52
4 Core 1.5* 0.6 0.9 10 14.8 522 12.1 15.428 0.104 15.428 9.5
2.5* 0.7 0.9 11.5 16.0 618 7.41 9.448 0.101 9.448 7.7
4* 0.7 0.9 13 17.8 725 4.61 5.878 0.099 5.878 6.8
6* 0.7 1.25 14.5 20.0 985 3.08 3.927 0.094 3.925 4.3
10* 0.7 1.25 16.5 22.0 1255 1.83 2.333 0.093 2.335 3.7
16 0.7 1.25 19 24.5 1635 1.15 1.466 0.088 1.469 3.2
25 0.9 1.6 22 28.5 2145 0.727 0.927 0.082 0.930 2.3
35 0.9 1.6 24.5 31.5 2645 0.524 0.668 0.077 0.673 2
50 1.0 1.6 26 33.2 3103 0.387 0.494 0.076 0.500 1.8
70 1.1 2.0 30.5 39.2 4405 0.268 0.342 0.075 0.349 1.2
95 1.1 2.0 34.5 43.2 5653 0.193 0.247 0.074 0.258 1.1
120 1.2 2.5 38.5 48.6 7252 0.153 0.196 0.072 0.209 0.76
150 1.4 2.5 42.5 53.0 8553 0.124 0.16 0.073 0.176 0.68
185 1.6 2.5 47.5 58.0 10304 0.0991 0.128 0.073 0.148 0.61
240 1.7 2.5 53.5 64.5 12895 0.0754 0.099 0.072 0.122 0.54
300 1.8 2.5 59.0 70.3 15545 0.0601 0.08 0.072 0.107 0.49
400 2.0 3.15 66.5 79.8 20245 0.047 0.064 0.071 0.096 0.35
