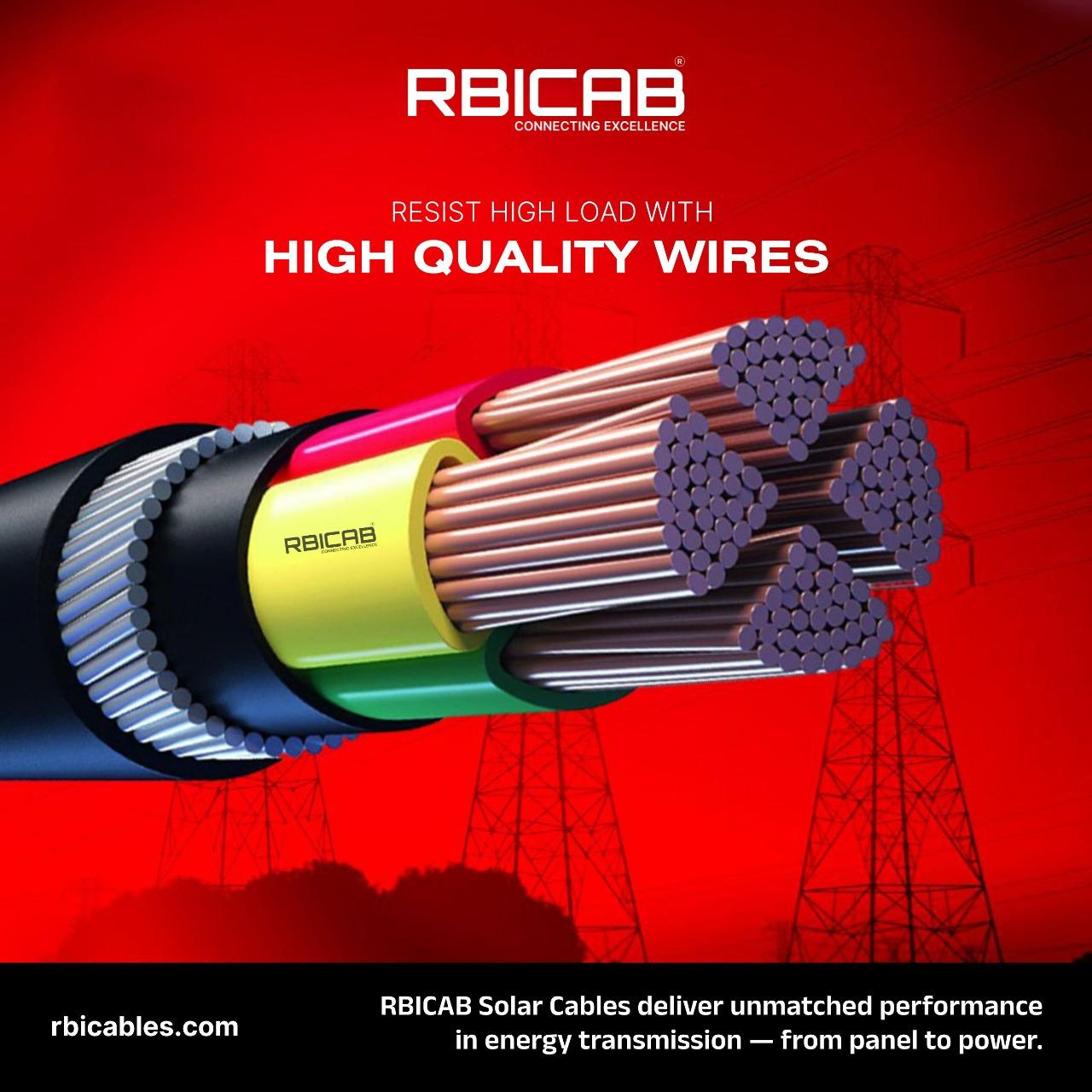

Copper Armoured / Unarmoured Cables

RBICAB Copper Armoured and Unarmoured Cables are high-performance electrical cables designed for reliable power transmission in industrial, commercial, and residential applications. These cables are engineered to carry electrical current safely over long distances while offering superior mechanical strength, electrical conductivity, and durability.

RBICAB Armoured Copper Cables feature a protective metallic layer, usually made of galvanized steel or aluminum wires, which shields the conductor from mechanical damage, impact, and rodent attacks. This makes them ideal for underground, outdoor, or industrial installations, where cables may be exposed to harsh environmental conditions or mechanical stress.

RBICAB Unarmoured Copper Cables, on the other hand, provide flexibility and ease of installation in areas where mechanical protection is not a primary requirement. These cables are suitable for indoor wiring, cable trays, panels, and building installations, offering excellent conductivity and safe power distribution.

Both types of RBICAB cables are manufactured with high-purity copper conductors to ensure minimal voltage drop and high efficiency. The insulation is typically made from PVC, XLPE, or other high-quality compounds, providing resistance against heat, moisture, chemicals, and fire. They comply with international standards such as IEC, IS, and BS, ensuring safety, reliability, and long service life.

Feature / Application Details
Conductor Material High-purity electrolytic copper for excellent conductivity and low voltage drop
Cable Type Armoured for mechanical protection (galvanized steel or aluminum) or unarmoured for indoor flexibility
Insulation Material PVC, XLPE, or other high-quality compounds resistant to heat, moisture, chemicals, and fire
Primary Uses Power distribution, industrial plants, renewable energy systems, commercial complexes, and infrastructure projects
Mechanical Protection Armoured cables protect against mechanical stress, impact, rodent attacks, and harsh environmental conditions
Installation Environment Indoor wiring, cable trays, panels, outdoor underground installations, and industrial applications
Durability High mechanical strength, corrosion resistance, and long service life
Standards Compliance Manufactured as per IEC, IS, BS, and other international standards
Performance Ensures safe and efficient power transmission with minimal energy loss and high reliability
“RBICAB” Single Core Copper Conductor, XLPE Insulated Unarmoured & Armoured Cable Conforming to IS 7098 PART-1/1988
Nominal Size of Conductor Form of Conductor Circular Nominal Thickness of XLPE Insulation For U/A Minimum Thickness of PVC Inner Sheath Unarmoured Cable Nominal Thickness of XLPE Insulation For Armoured Cable Formed Wire / Strip Armoured Cable Round Wire Armoured Cable Current Rating* * Normal Delivery Length
Nominal Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight of cable Nominal Dimension of Aluminium Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable Nominal Dimension of Aluminium Round Wire Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable In Ground In Air
Sq.mm mm mm mm mm mm Kgs./Km mm mm mm mm Kgs./Km mm mm mm Kgs./Km Amps. Amps. Mtrs.
4 Solid 0.70 -NA- 1.80 7.50 91 - - - - - - - - - 54 48 1000
4 Stranded 0.70 -NA- 1.80 8 95 - - - - - - - - - 54 48 1000
6 Solid 0.70 -NA- 1.80 8 115 - - - - - - - - - 67 61 1000
6 Stranded 0.70 -NA- 1.80 8.50 125 - - - - - - - - - 67 61 1000
10 Stranded 0.70 -NA- 1.80 9.50 170 1 - - - - 1.40 1.24 12 245 90 83 1000
16 Stranded 0.70 -NA- 1.80 10 219.90 1 - - - - 1.40 1.24 13 287.50 115 108 1000
25 Stranded 0.90 -NA- 1.80 12 317.60 1.20 - - - - 1.40 1.24 14 394.98 148 144 1000
35 Stranded 0.90 -NA- 1.80 13 414.50 1.20 - - - - 1.40 1.24 16 498.49 177 176 1000
50 Stranded 1 -NA- 1.80 14 545.30 1.30 - - - - 1.40 1.24 17 639.54 208 212 1000
70 Stranded 1.10 -NA- 1.80 16 748.20 1.40 - - - - 1.40 1.24 19 851.95 255 269 1000
95 Stranded 1.10 -NA- 1.80 17.50 984.60 1.40 4x0.80 1.40 18.60 1053.41 1.60 1.40 22 1132.28 312 340 1000
120 Stranded 1.20 -NA- 1.80 19 1220.70 1.50 4x0.80 1.40 20.40 1303.62 1.60 1.40 23.50 1382.74 355 396 1000
150 Stranded 1.40 -NA- 2 21.50 1527.60 1.70 4x0.80 1.40 22.20 1596.21 1.60 1.40 24.50 1683.36 396 450 1000
185 Stranded 1.60 -NA- 2 23.50 1864.40 1.90 4x0.80 1.40 24.40 1944.67 1.60 1.40 26.50 2032.06 447 519 1000
240 Stranded 1.70 -NA- 2 26 2362.40 2 4x0.80 1.40 26.60 2446.45 1.60 1.40 26.50 2547.15 515 613 1000
300 Stranded 1.80 -NA- 2 28.50 2913.80 2.10 4x0.80 1.56 29.60 3037.51 1.60 1.56 31.50 3145.30 576 700 500
400 Stranded 2 -NA- 2.20 33 3805.20 2.40 4x0.80 1.56 33.20 3920.45 2 1.56 36.50 4124.29 651 813 500
500 Stranded 2.20 -NA- 2.20 36 4765.40 2.60 4x0.80 1.56 36.70 4898.63 2 1.56 39.50 5120.57 727 930 500
630 Stranded 2.40 -NA- 2.20 40 5955.20 2.80 4x0.80 1.72 41.20 6145.82 2 1.72 43 6388.22 806 1056 500
800 Stranded 2.60 -NA- 2.40 43.70 7524.80 3.10 4x0.80 1.72 45.10 7707.59 2 1.88 49.50 8014.82 877 1179 500
1000 Stranded 2.80 -NA- 2.60 49.20 9385.90 3.30 4x0.80 1.88 50.60 9587.17 2.50 2.04 54 10080.31 935 1288 500
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Conductor Technical Information For Single Core And Multicore Cables Conforming to IS-8130/1984 (Stranded - Class-2) Copper & Aluminium Conductors.
Nominal Size of Conductor Minimum no. of wires Max D.C. Resistance at 20°C A.C. Resistance at 90°C
Non Compacted Compacted Plain Copper Aluminium Plain Copper Aluminium
Round/Shaped
Sq.mm CU. ALU. CU. ALU. Ohm/Km Ohm/Km Ohm/Km Ohm/Km
1.5* 3 3 - - 12.10 18.1 15.50 23.17
2.5* 3 3 - - 7.41 12.1 9.48 15.50
4* 7 3 - - 4.61 7.41 5.90 9.48
6* 7 3 - - 3.08 4.61 3.94 5.90
10* 7 7 6 - 1.83 3.08 2.34 3.94
16 7 7 6 6 1.15 1.91 1.47 2.44
25 7 7 6 6 0.727 1.20 0.93 1.54
35 7 7 6 6 0.524 0.868 0.671 1.11
50 19 19 6 6 0.387 0.641 0.495 0.82
70 19 19 12 12 0.268 0.443 0.343 0.567
95 19 19 15 15 0.193 0.32 0.247 0.410
120 37 37 18 15 0.153 0.253 0.196 0.324
150 37 37 18 15 0.124 0.206 0.159 0.264
185 37 37 30 30 0.0991 0.164 0.127 0.210
240 61 37 34 30 0.0754 0.125 0.0965 0.160
300 61 61 34 30 0.0601 0.100 0.0769 0.128
400 61 61 53 53 0.047 0.0778 0.0602 0.100
500 61 61 53 53 0.0366 0.0605 0.0468 0.0774
630 91 91 53 53 0.0283 0.0469 0.0362 0.0600
800 91 91 53 53 0.0221 0.0367 0.0283 0.0470
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
“RBICAB” Two Core Copper Conductor, XLPE Insulated Unarmoured & Armoured Cable Conforming to IS 7098 PART-1/1988
Nominal Size of Conductor Form of Conductor Circular Shaped O/Q Nominal Thickness of XLPE Insulation For U/A Minimum Thickness of PVC Inner Sheath Unarmoured Cable Formed Wire / Strip Armoured Cable Round Wire Armoured Cable Current Rating. * *Normal Delivery Length
Nominal Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight of cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable In Ground In Air
Sq.mm mm mm mm mm mm Kgs/Km mm mm mm Kgs/Km mm mm mm Kgs/Km Amps. Amps. Mtrs.
4 Solid o 0.70 0.30 1.80 12.50 165 -NA- -NA- -NA- -NA- 1.40 1.24 14.50 480 54 48 1000
4 Stranded o 0.70 0.30 1.80 13 175 -NA- -NA- -NA- -NA- 1.40 1.24 15.50 525 54 48 1000
6 Solid o 0.70 0.30 1.80 13.50 210 -NA- -NA- -NA- -NA- 1.40 1.24 15.50 564 67 61 1000
6 Stranded o 0.70 0.30 1.80 14 225 -NA- -NA- -NA- -NA- 1.40 1.24 16.50 610 67 61 1000
10 Stranded o 0.70 0.30 1.80 16 300 -NA- -NA- -NA- -NA- 1.40 1.24 18 740 89 83 1000
16 Stranded Q 0.70 0.30 1.80 14 425 -NA- -NA- -NA- -NA- 1.40 1.40 17 696.50 115 108 1000
25 Stranded Q 0.90 0.30 2 17 640 4x0.80 1.40 18.50 804.40 1.60 1.40 20 1001.70 147 140 1000
35 Stranded Q 0.90 0.30 2 19 838.50 4x0.80 1.40 20 1019.70 1.60 1.40 22 1224.20 176 172 1000
50 Stranded Q 1 0.30 2 21 1108.20 4x0.80 1.40 22.50 1330.70 1.60 1.40 24 1549.90 208 208 1000
70 Stranded Q 1.10 0.30 2 23 1511.80 4x0.80 1.56 25.50 1793.80 1.60 1.56 27 2046.10 253 262 1000
95 Stranded Q 1.10 0.40 2.20 26.50 2027.50 4x0.80 1.56 28 2327.40 2 1.56 30.50 2749.90 302 322 500
120 Stranded Q 1.20 0.40 2.20 28.50 2501.10 4x0.80 1.56 30.50 2818.60 2 1.56 33 3317.80 340 368 500
150 Stranded Q 1.40 0.40 2.20 32 3070 4x0.80 1.72 31.80 3468 2 1.72 36 4018.70 379 419 500
185 Stranded Q 1.60 0.50 2.40 35.50 3800 4x0.80 1.72 37 4199.90 2 1.88 40 4829.60 425 482 500
240 Stranded Q 1.70 0.50 2.60 39.50 4859.30 4x0.80 1.88 38.70 5302.20 2.50 2.04 42.40 6304.90 486 566 500
300 Stranded Q 1.80 0.60 2.80 43.50 6028.30 4x0.80 2.04 42.50 6499.80 2.50 2.20 46.20 7611.40 541 644 500
400 Stranded Q 2 0.60 3 49 7828.40 4x0.80 2.36 48.20 8405.90 2.50 2.36 51.60 9590.90 602 734 500
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
“RBICAB” Three Core Copper Conductor, XLPE Insulated Unarmoured & Armoured Cable Conforming to IS 7098 PART-1/1988
Nominal Size of Conductor Form of Conductor Circular Shaped O/^ Nominal Thickness of XLPE Insulation Minimum Thickness of PVC Inner Sheath Unarmoured Cable Formed Wire / Strip Armoured Cable Round Wire Armoured Cable Current Rating. * *Normal Delivery Length
Nominal Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight of cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable In Ground In Air
Sq.mm mm mm mm mm mm Kgs/Km mm mm mm Kgs/Km mm mm mm Kgs/Km Amps. Amps. Mtrs.
4 Solid o 0.70 0.30 1.80 14 210 -NA- -NA- -NA- -NA- 1.40 1.24 15 530 45 41 1000
4 Stranded ^ 0.70 0.30 1.80 15.50 235 -NA- -NA- -NA- -NA- 1.40 1.24 16 580 45 41 1000
6 Solid ^ 0.70 0.30 1.80 15.50 280 -NA- -NA- -NA- -NA- 1.40 1.24 16 640 56 52 1000
6 Stranded ^ 0.70 0.30 1.80 16 300 -NA- -NA- -NA- -NA- 1.40 1.24 17 680 56 52 1000
10 Stranded ^ 0.70 0.30 1.80 18 415 -NA- -NA- -NA- -NA- 1.40 1.24 19 865 74 70 1000
16 Stranded ^ 0.70 0.30 1.80 16.20 425 4x0.80 1.24 16.80 772.30 1.60 1.40 18.80 933.10 95 89 1000
25 Stranded ^ 0.90 0.30 2 19.50 910.10 4x0.80 1.40 20.10 1111.60 1.60 1.40 21.70 1304.20 122 119 1000
35 Stranded ^ 0.90 0.30 2 21.50 1199 4x0.80 1.40 22 1419.50 1.60 1.40 23.60 1634.70 146 147 1000
50 Stranded ^ 1 0.30 2 24.50 1598.60 4x0.80 1.40 24.80 1857.20 1.60 1.56 26.80 2123.10 173 179 1000
70 Stranded ^ 1.10 0.40 2.20 28 2235.30 4x0.80 1.56 28.50 2529.90 2 1.56 30.90 2970.40 212 226 500
95 Stranded ^ 1.10 0.40 2.20 30.80 2950.60 4x0.80 1.56 31.30 3284.70 2 1.56 33.70 3798.80 254 279 500
120 Stranded ^ 1.20 0.40 2.20 33.80 3652.90 4x0.80 1.56 34.30 4026.30 2 1.72 37 4618.80 287 320 500
150 Stranded ^ 1.40 0.50 2.40 37.90 4575.50 4x0.80 1.72 38.30 4979.30 2.50 1.88 41.10 5650.40 321 365 500
185 Stranded ^ 1.60 0.50 2.60 42 5621.70 4x0.80 1.88 42.30 6031.20 2.50 2.04 46 7124.80 362 422 500
240 Stranded ^ 1.70 0.60 2.80 48.90 7198.90 4x0.80 2.04 47.20 7656.30 2.50 2.20 50.90 8873.80 418 500 500
300 Stranded ^ 1.80 0.60 3 51.50 8903 4x0.80 2.20 51.80 9407.50 2.50 2.36 55.50 10748.80 469 574 500
400 Stranded ^ 2 0.70 3.20 58.60 11602.60 4x0.80 2.52 58.50 12167.10 3.15 2.68 64 14317.90 528 662 250
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
“RBICAB” Three and Half Core Copper Conductor, XLPE Insulated Unarmoured & Armoured Cable Conforming to IS 7098 PART-1/1988
Nominal Size of Conductor Form of Conductor Circular Shaped Nominal Thickness of XLPE Insulation Main / Neutral Minimum Thickness of PVC Inner Sheath Unarmoured Cable Formed Wire / Strip Armoured Cable Round Wire Armoured Cable Current Rating. * *Normal Delivery Length
Nominal Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight of cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable In Ground In Air
Sq.mm mm mm mm mm mm Kgs/Km mm mm mm Kgs/Km mm mm mm Kgs/Km Amps. Amps. Mtrs.
25/16 Stranded 0.90 0.70 0.30 2 21.30 1075 4×0.80 1.40 21.90 1272 1.60 1.40 23.60 1511 122 119 1000
35/16 Stranded 0.90 0.70 0.30 2 23.60 1368 4×0.80 1.40 24.20 1607 1.60 1.40 25.80 1860 146 147 1000
50/25 Stranded 1.0 0.90 0.30 2 26.80 1851 4×0.80 1.40 27.40 2129 1.60 1.56 29 2435 173 179 1000
70/35 Stranded 1.10 0.90 0.40 2.20 31 2587 4×0.80 1.56 31.50 2897 2 1.56 33.90 3434 212 226 500
95/50 Stranded 1.10 1 0.40 2.20 31 3428 4×0.80 1.56 34.80 3777 2 1.56 37.20 4364 254 279 500
120/70 Stranded 1.20 1.10 0.40 2.20 37.60 4315 4×0.80 1.72 38.50 4738 2 1.72 41 5400 287 320 500
150/70 Stranded 1.40 1.10 0.50 2.40 42.30 5220 4×0.80 1.72 42.70 5670 2 1.88 45 6465 321 365 500
185/95 Stranded 1.60 1.10 0.50 2.60 46.80 6535 4×0.80 1.88 47.20 7000 2.50 2.04 50 8215 362 422 500
240/120 Stranded 1.70 1.20 0.60 2.80 52.40 8349 4×0.80 2.04 52.70 8837 2.50 2.20 56 10237 418 500 500
300/150 Stranded 1.80 1.40 0.60 3 57 10340 4×0.80 2.20 57.90 10894 2.50 2.36 61 12400 469 574 500
400/185 Stranded 2.1 .60 0.70 3.40 65 13443 4×0.80 2.52 66.10 14040 3.15 2.68 70 16438 528 662 250
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
“RBICAB” Four Core Copper Conductor, XLPE Insulated Unarmoured & Armoured Cable Conforming to IS 7098 PART-1/1988
Nominal Size of Conductor Form of Conductor Circular Shaped Nominal Thickness of XLPE Insulation Minimum Thickness of PVC Inner Sheath Unarmoured Cable Formed Wire / Strip Armoured Cable Round Wire Armoured Cable Current Rating. * *Normal Delivery Length
Nominal Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight of cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable In Ground In Air
Sq.mm mm mm mm mm mm Kgs/Km mm mm mm Kgs/Km mm mm mm Kgs/Km Amps. Amps. Mtrs.
4 Solid o 0.70 0.30 1.80 13.50 260 -NA- -NA- -NA- -NA- 1.40 1.24 15.30 509 45 41 1000
4 Stranded o 0.70 0.30 1.80 14.20 280 -NA- -NA- -NA- -NA- 1.40 1.24 16 533 45 41 1000
6 Solid 0.70 0.30 1.80 14.70 350 -NA- -NA- -NA- -NA- 1.40 1.24 16.50 618 56 52 1000
6 Stranded 0.70 0.30 1.80 14.70 350 -NA- -NA- -NA- -NA- 1.40 1.24 16.50 618 56 52 1000
6 Stranded 0.70 0.30 1.80 15.50 365 -NA- -NA- -NA- -NA- 1.40 1.24 17.30 652 56 52 1000
10 Stranded 0.70 0.30 1.80 17.80 510 -NA- -NA- -NA- -NA- 1.40 1.40 19.80 877 74 70 1000
16 Stranded 0.70 0.30 1.80 17.50 750 4x0.80 1.40 20 1007 1.60 1.40 21 1185 95 89 1000
25 Stranded 0.90 0.30 2 21 1170 4x0.80 1.40 23 1423 1.60 1.40 25 1661 122 119 500
35 Stranded 0.90 0.30 2 23.50 1550 4x0.80 1.40 25 1847 1.60 1.40 26.50 2100 146 147 500
50 Stranded 1 0.30 2 26 2091 4x0.80 1.56 28 2433 1.60 1.56 29.50 2747 173 179 500
70 Stranded 1.10 0.40 2.20 30.50 2925 4x0.80 1.56 32 3308 2 1.56 34 3871 212 226 500
95 Stranded 1.10 0.40 2.20 33.50 3880 4*0.80 1.56 35 4295 2 1.72 38 4964 254 279 500
120 Stranded 1.20 0.50 2.40 37.50 4825 4x0.80 1.72 39 5276 2 1.88 42 6094 287 320 500
150 Stranded 1.40 0.50 2.60 42 6000 4x0.80 1.88 43.50 6497 2.50 2.04 47 7759 321 365 500
185 Stranded 1.60 0.50 2.80 46.50 7380 4x0.80 2.04 48 7925 2.50 2.20 52 9310 362 422 500
240 Stranded 1.70 0.60 3 52.50 9548 4x0.80 2.20 54 10078 2.50 2.36 57.50 11640 418 500 500
300 Stranded 1.80 0.70 3.20 58 11839 4x0.80 2.36 59.50 12385 3.15 2.52 64.50 14787 469 574 500
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
“RBICAB” 650/1100 Volts Multicore Control Cable with Solid Copper Conductor of size 1.5 SQ.MM XLPE Insulated Unarmoured & Armoured Cable Conforming to IS 7098 PART-1/1988
Number of Cores Nominal Thickness of XLPE Insulation O/^ Minimum Thickness of PVC Inner Sheath Unarmoured Cable Formed Wire / Strip Armoured Cable Round Wire Armoured Cable Current Rating. * *Normal Delivery Length
Nominal Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight of cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable In Ground In Air
Cores mm mm mm mm Kgs/.Km mm mm mm Kgs/.Km mm mm mm Kgs/Km Amps. Amps. Mtrs.
2 0.70 o 0.30 1.80 10 140 -NA- -NA- -NA- -NA- 1.40 1.24 11.90 288 31 27 1000
3 0.70 0.30 1.80 10.50 160 -NA- -NA- -NA- -NA- 1.40 1.24 12.40 302 26 23 1000
4 0.70 o 0.30 1.80 11.50 187 -NA- -NA- -NA- -NA- 1.40 1.24 13.10 349 26 23 1000
5 0.70 o 0.30 1.80 12.10 195 -NA- -NA- -NA- -NA- 1.40 1.24 13.90 385 26 23 1000
6 0.70 0.30 1.80 12.90 222 -NA- -NA- -NA- -NA- 1.40 1.24 14.70 432 23 20 1000
7 0.70 o 0.30 1.80 12.90 239 -NA- -NA- -NA- -NA- 1.40 1.24 14.70 450 20 18 1000
8 0.70 0.30 1.80 14 280 -NA- -NA- -NA- -NA- 1.40 1.24 16.50 494 17 15 1000
9 0.70 0.30 1.80 15 315 -NA- -NA- -NA- -NA- 1.40 1.24 17.50 542 17 15 1000
10 0.70 o 0.30 1.80 15.70 331 -NA- -NA- -NA- -NA- 1.40 1.24 17.50 594 17 15 1000
12 0.70 ^ 0.30 1.80 16.10 373 -NA- -NA- -NA- -NA- 1.40 1.24 18 646 16 14 1000
14 0.70 - 0.30 1.80 16.80 417 -NA- -NA- -NA- -NA- 1.40 1.40 18.90 709 16 14 1000
16 0.70 - 0.30 1.80 17.70 463 4x0.80 1.40 18.50 651 1.60 1.40 20.10 807 14 12 1000
19 0.70 ^ 0.30 1.80 18.50 527 4x0.80 1.40 19.30 736 1.60 1.40 20.90 900 14 12 1000
21 0.70 ^ 0.30 2 19.80 593 4x0.80 1.40 20.20 804 1.60 1.40 21.80 960 12 11 500
24 0.70 ^ 0.30 2 21.70 665 4x0.80 1.40 22.10 900 1.60 1.40 23.70 1094 12 11 500
27 0.70 ^ 0.30 2 22.10 730 4x0.80 1.40 22.50 958 1.60 1.40 24.10 1152 11 9 500
30 0.70 ^ 0.30 2 22.80 794 4x0.80 1.40 23.20 1043 1.60 1.40 24.90 1229 11 9 500
33 0.70 * 0.30 2 23.70 858 4x0.80 1.40 24.10 1106 1.60 1.40 25.70 1322 11 9 500
37 0.70 ^ 0.30 2 24.50 942 4x0.80 1.40 24.90 1210 1.60 1.40 26.50 1419 11 9 500
44 0.70 ^ 0.30 2 27.30 1103 4x0.80 1.40 27.70 1410 1.60 1.56 29.70 1678 9 8 500
52 0.70 ^ 0.30 2 28.40 1264 4x0.80 1.56 29.20 1618 1.60 1.56 30.90 1867 9 8 500
61 0.70* 0.40 2.20 30.70 1493 4x0.80 1.56 31.10 1837 2 1.56 33.50 2283 9 8 500
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
“RBICAB” 650/1100 Volts Multicore Control Cable with Solid Copper Conductor of size 2.5 SQ.MM XLPE Insulated Unarmoured & Armoured Cable Conforming to IS 7098 PART-1/1988
Number of Cores Nominal Thickness of XLPE Insulation O/^ Minimum Thickness of PVC Inner Sheath Unarmoured Cable Formed Wire / Strip Armoured Cable Round Wire Armoured Cable Current Rating. * *Normal Delivery Length
Nominal Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight of cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable Nominal Dimension of GI Flat Strip Minimum Thickness of PVC Outer Sheath Approx Overall Diameter Of Cable Approx Weight Of Cable In Ground In Air
Cores mm mm mm mm Kgs/.Km mm mm mm Kgs/.Km mm mm mm Kgs/Km Amps. Amps. Mtrs.
2 0.70 o 0.30 1.80 10.90 173 -NA- -NA- -NA- -NA- 1.40 1.24 12.70 342 41 36 1000
3 0.70 ° 0.30 1.80 11.40 202 -NA- -NA- -NA- -NA- 1.40 1.24 13.20 360 34 30 1000
4 0.70 ° 0.30 1.80 12.20 240 -NA- -NA- -NA- -NA- 1.40 1.24 14 406 34 30 1000
5 0.70 o 0.30 1.80 13.10 254 -NA- -NA- -NA- -NA- 1.40 1.24 14.90 464 34 30 1000
6 0.70 o 0.30 1.80 14 291 -NA- -NA- -NA- -NA- 1.40 1.24 15.90 522 31 27 1000
7 0.70 o 0.30 1.80 14 318 -NA- -NA- -NA- -NA- 1.40 1.24 15.90 549 27 23 1000
8 0.70 o 0.30 1.80 16 342 -NA- -NA- -NA- -NA- 1.40 1.24 17 608 23 20 1000
9 0.70 ° 0.30 1.80 16.50 385 -NA- -NA- -NA- -NA- 1.40 1.40 18.50 684 23 20 1000
10 0.70 ° 0.30 1.80 17.20 444 400.80 1.24 17.80 624 1.60 1.40 19.60 789 23 20 1000
12 0.70 - 0.30 1.80 17.70 506 400.80 1.40 18.50 694 1.60 1.40 20.10 865 20 18 1000
14 0.70 - 0.30 1.80 18.50 571 400.80 1.40 19.30 780 1.60 1.40 20.90 944 20 18 1000
16 0.70 - 0.30 2 19.80 656 400.80 1.40 20.20 867 1.60 1.40 21.90 1023 18 16 1000
19 0.70 - 0.30 2 20.80 751 400.80 1.40 21.20 960 1.60 1.40 22.80 1147 18 16 1000
21 0.70 - 0.30 2 21.80 820 400.80 1.40 22.20 1049 1.60 1.40 23.90 1243 16 14 500
24 0.70 - 0.30 2 24 929 400.80 1.40 24.40 1198 1.60 1.40 26 1392 16 14 500
27 0.70 ^ 0.30 2 24.50 1019 400.80 1.40 24.90 1287 1.60 1.40 26.50 1496 14 13 500
30 0.70 ^ 0.30 2 25.30 1113 400.80 1.40 25.70 1378 1.60 1.40 27.30 1618 14 13 500
33 0.70 ^ 0.30 2 26.20 1207 400.80 1.40 26.60 1494 1.60 1.56 28.60 1753 14 13 500
37 0.70 - 0.30 2 27.20 1331 400.80 1.40 27.60 1637 1.60 1.56 29.60 1905 14 13 500
44 0.70 ^ 0.40 2.20 30.90 1610 400.80 1.56 31.30 1953 2 1.56 33.70 2399 12 11 500
52 0.70 ^ 0.40 2.20 32.20 1851 400.80 1.56 32.60 2214 2 1.56 35 2685 12 11 500
61 0.70 - 0.40 2.20 34.10 2128 400.80 1.56 34.50 2509 2 1.56 36.90 3029 12 11 500
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Need special / Customise cables according to your requirements? We Provide a Variety of Solutions – Contact Us Now!
Logo
Go Back Top
call icon
WhatsApp Icon
WhatsApp Icon
